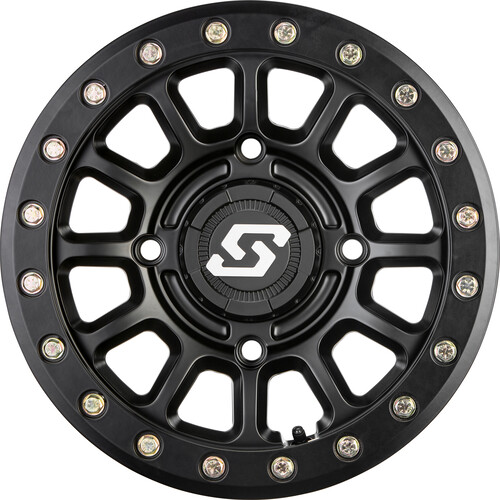

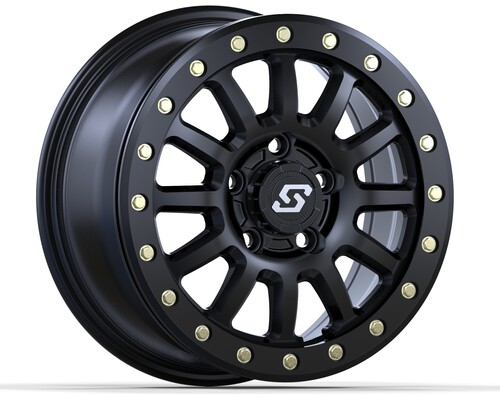

Sano Beadlock Wheel

This is the perfect wheel for someone who wants something that isn’t too flashy but far from plain and basic, a wheel that makes you say “Thats Clean”. The Sano, another one of our true race inspired beadlock wheels, is designed to handle the punishment of off-road racing and finish on the top step of the podium. You can’t take anything away from a wheel as clean as the Sano.

  • Heavy-duty 12 spoke mesh style design
  • Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring
  • USA made Grade 8 zinc beadlock hardware included, Torque spec 17ft.lbs
  • Engineered to be one of the strongest wheels available

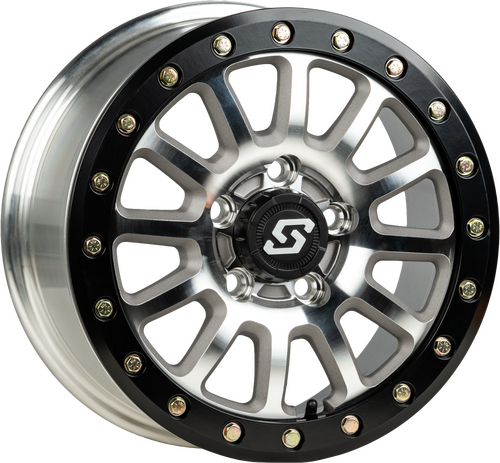

  • Available in both Satin Black and As Cast/Machined finishes
  • Includes a satin black snap-in cap with embossed Sedona S logo
  • Available in both 14” and 15” diameters for most ATV/UTV bolt patterns
  • May require aftermarket lug nuts

$247.95 - $312.95

Part # Wheel Size Pattern True Offset Industry Offset Finish Color Price
570-2010 14 in. x 7 in. 4/110 +10 mm 5+2 Satin Black $247.95
570-2013 14 in. x 7 in. 4/110 +10 mm 5+2 Raw Cast $247.95
570-2022 15 in. x 6 in. 4/137 +40 mm 5+1 Satin Black $279.95
570-2024 15 in. x 6 in. 4/137 +40 mm 5+1 Raw Cast $279.95
570-2011 14 in. x 7 in. 4/137 +10 mm 5+2 Satin Black $247.95
570-2014 14 in. x 7 in. 4/137 +10 mm 5+2 Raw Cast $247.95
570-2026 15 in. x 7 in. 4/137 +10 mm 5+2 Satin Black $284.95
570-2028 15 in. x 7 in. 4/137 +10 mm 5+2 Raw Cast $284.95
570-2017 14 in. x 7 in. 4/137 +38 mm 6+1 Satin Black $247.95
570-2020 14 in. x 7 in. 4/137 +38 mm 6+1 Raw Cast $247.95
570-2023 15 in. x 6 in. 4/156 +40 mm 5+1 Satin Black $279.95
570-2025 15 in. x 6 in. 4/156 +40 mm 5+1 Raw Cast $279.95
570-2012 14 in. x 7 in. 4/156 +10 mm 5+2 Satin Black $247.95
570-2015 14 in. x 7 in. 4/156 +10 mm 5+2 Raw Cast $247.95
570-2027 15 in. x 7 in. 4/156 +10 mm 5+2 Satin Black $284.95
570-2029 15 in. x 7 in. 4/156 +10 mm 5+2 Raw Cast $284.95
570-2018 14 in. x 7 in. 4/156 +38 mm 6+1 Satin Black $247.95
570-2021 14 in. x 7 in. 4/156 +38 mm 6+1 Raw Cast $247.95
570-2045 15 in. x 7 in. 5/4.5 +50 mm 6+1 Satin Black $312.95
570-2046 15 in. x 7 in. 5/4.5 +50 mm 6+1 Raw Cast $312.95
